8MM PCB 12v 2835 Led Strip Red Yellow Green Blue White

Brand :aililed

Product origin :shenzhen

Delivery time :3-15days

Supply capacity :500000m/month

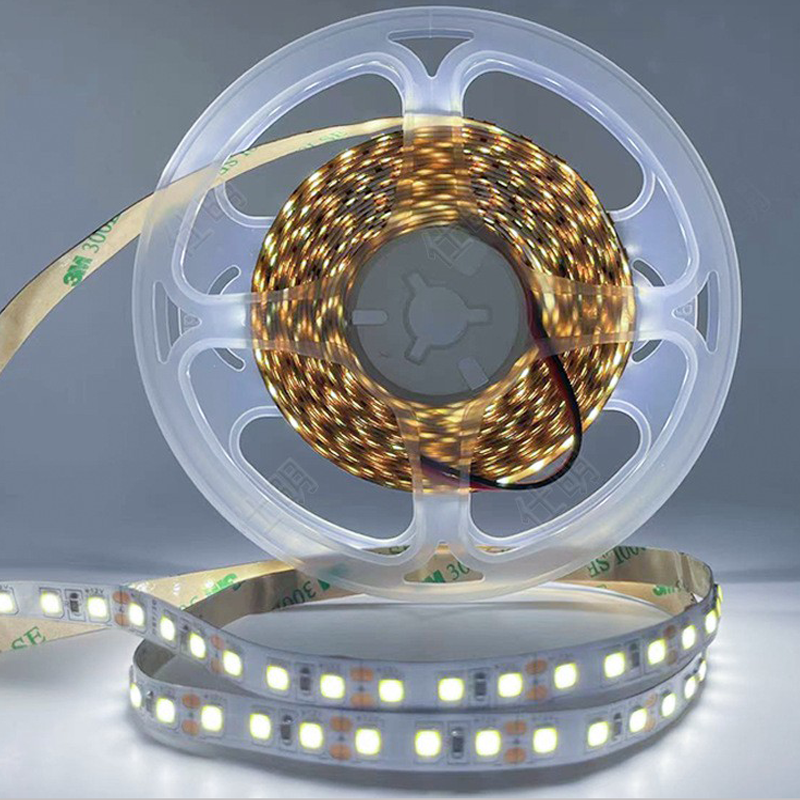

8mm pcb DC 12V 5V solid color flexible strip led lights with 3528 2835 SMD LED, RED/GREEN/BLUE/YELLOW/WHITE option
PCB Width8mm
Size(mm)L5000 x W8mm
Emitting colorRed/green/blue/yellow/white
LED TYPESMD 3528 led, smd2835 led
LED QTY60Leds/m, 120leds/m
Beam Angle140 degree
Working VoltageDC12V /DC5V
Wattage/meter4.8w/m (max)
Working Temperature-40°C ~ 60°C
Storage Temperature-20°C ~ 80°C
Packing5meters/roll, can be customized

1. Standard reel length: 5 meters/roll, also can be customized.

2. Cutted : 3 RGB LEDs per segment, can be cut per 3 LEDs.

    Easily cut with wire cutters, there are cut-lines.

3. Power supply : must use a 12 V DC power supply to power this strip.

 Do not use higher than 13V,or the entire strip will be destroyed.

4. Non-waterproof IP20 + 3M tape on back side of PCB.

    Waterproof : silicon tube casing IP65 +10pcs silicon clips & screw for installation, or 3M adhesive back side.

5. PCB color : white .

6. LED QTY: 60LEDs per meter. 120leds/m

7. LED Brightness: 1200lm/m .

IP rate

IP20 non-waterproof,

IP65 soft glue waterproof ,

IP66 soft tube casing,

IP68 soft tube+glue waterproof.

Glue type

Epoxy : Non-anti UV, Stay clean for short time, smell,

Silicone : Anti-UV, Stay clean, soft, smell-less,

PU : Anti-UV, Stay clean, soft, smell-less

Cut size

DC12V (every 3 led per cut),

DC24V (every 6 leds per cut)

30leds/m with 100mm per cut

60leds/m with 50mm per cut


We accept customized size


This excellent light and user-friendly designs make LED strip perfect for numerous applications. ie cove lights, back lights, cabinet lights, edge light, architectural lights for corridor, canopy, arcway, lights for path and contour marking, etc.
